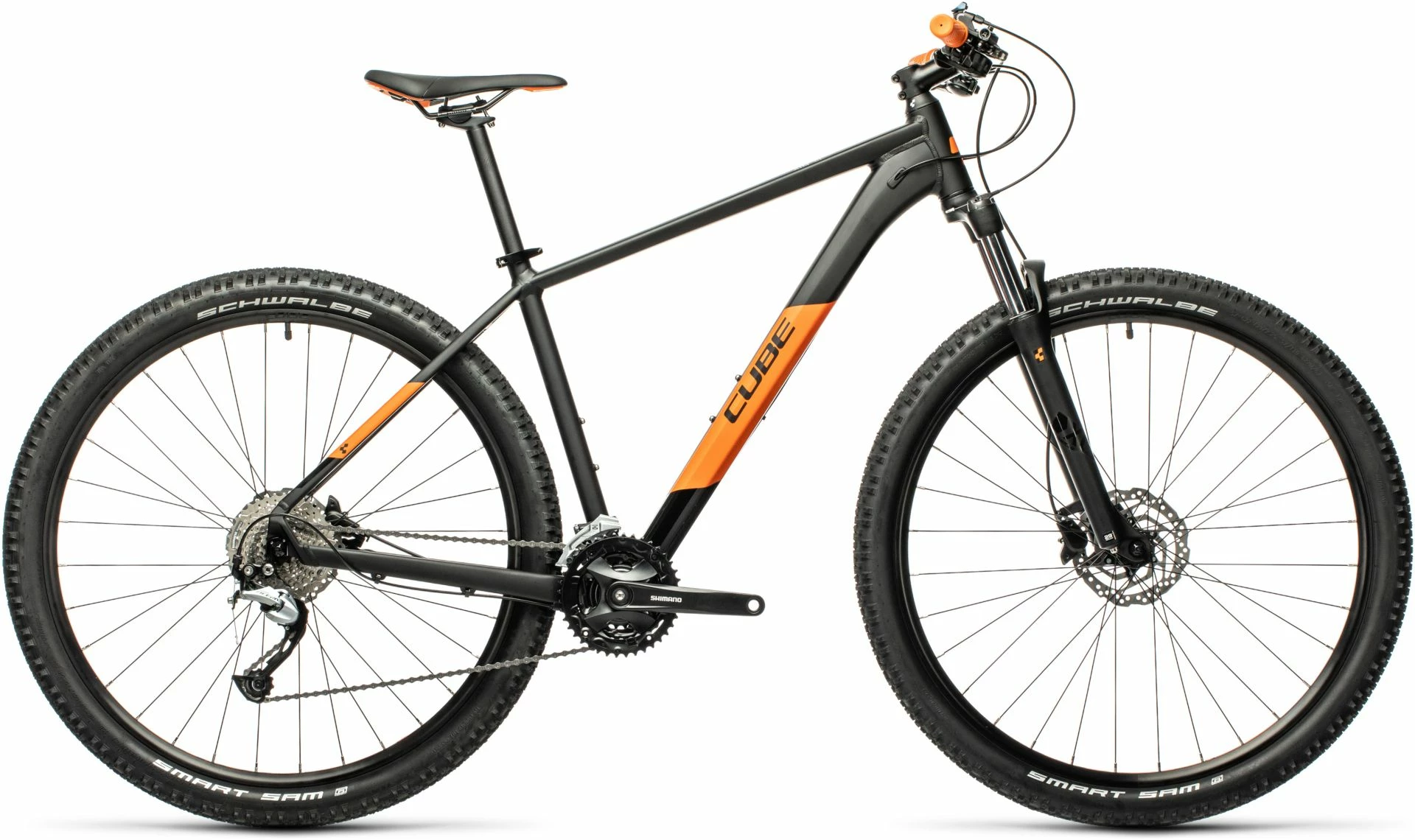

Cube Aim SL 2021 Bike

This is a bike for riders looking to broaden their trail-riding horizons. The Suntour XCM suspension fork, with 100mm
of fatigue-reducing travel for better comfort and control, has the convenience of a remote lockout. Shimano’s
powerful, safe hydraulic disc brakes mean you can stop in any weather and on any road or trail surface. And the
superbly slick-shifting Shimano gears put the right ratio for any riding scenario just a click away.

Frame

You want a bike that responds quickly, safely and intuitively. That’s why the Aim’s top and down tubes have complex
profiles – to ensure that it steers accurately and accelerates effortlessly. Built with 6061 aluminium using our
Advanced Mechancial Forming process, it’s your guarantee of a lightweight, comfortable and durable frame.
Internally routed cables keep your gears running smoothly with reduced maintenance, and Agile Ride Geometry
delivers assured, nimble handling to put a smile on your face, every time. There’s even rack and guard mounts,
too, for added versatility.

Specifications

• Frame: Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
• Fork: SR Suntour XCM RL Disc, 100mm, Remote Lockout
• Headset: Cube FPH863, Semi-Integrated
• Stem: Cube Performance Stem Pro, 31.8mm
• Handlebar: Cube Rise Trail Bar, 680mm
• Grips: Cube Performance Grip
• Rear Derailleur: Shimano RD-M3100, 9-Speed
• Front Derailleur: Shimano FD-M3000, Top Swing, 31.8mm Clamp
• Shifters: Shimano SL-M2010, Rapidfire-Plus
• Brake System: Shimano BR-MT200, Hydr. Disc Brake (160/160)
• Crankset: Shimano FC-MT101, 40x30x22T, 175mm
• Chain: KMC X9
• Cassette: Shimano CS-HG201-9, 11-36T
• Front Hub: Shimano HB-TX505, QR, Centerlock
• Rear Hub: Shimano FH-TX505, QR, Centerlock
• Rims: Cube ZX20, 32H, Disc
• Tyres: Schwalbe Smart Sam, Active, 2.25
• Pedals: Cube PP MTB
• Saddle: Natural Fit Venec Lite
• Seat Post: Cube Performance Post, 27.2mm
• Seatclamp: Cube Varioclose, 31.8mm
