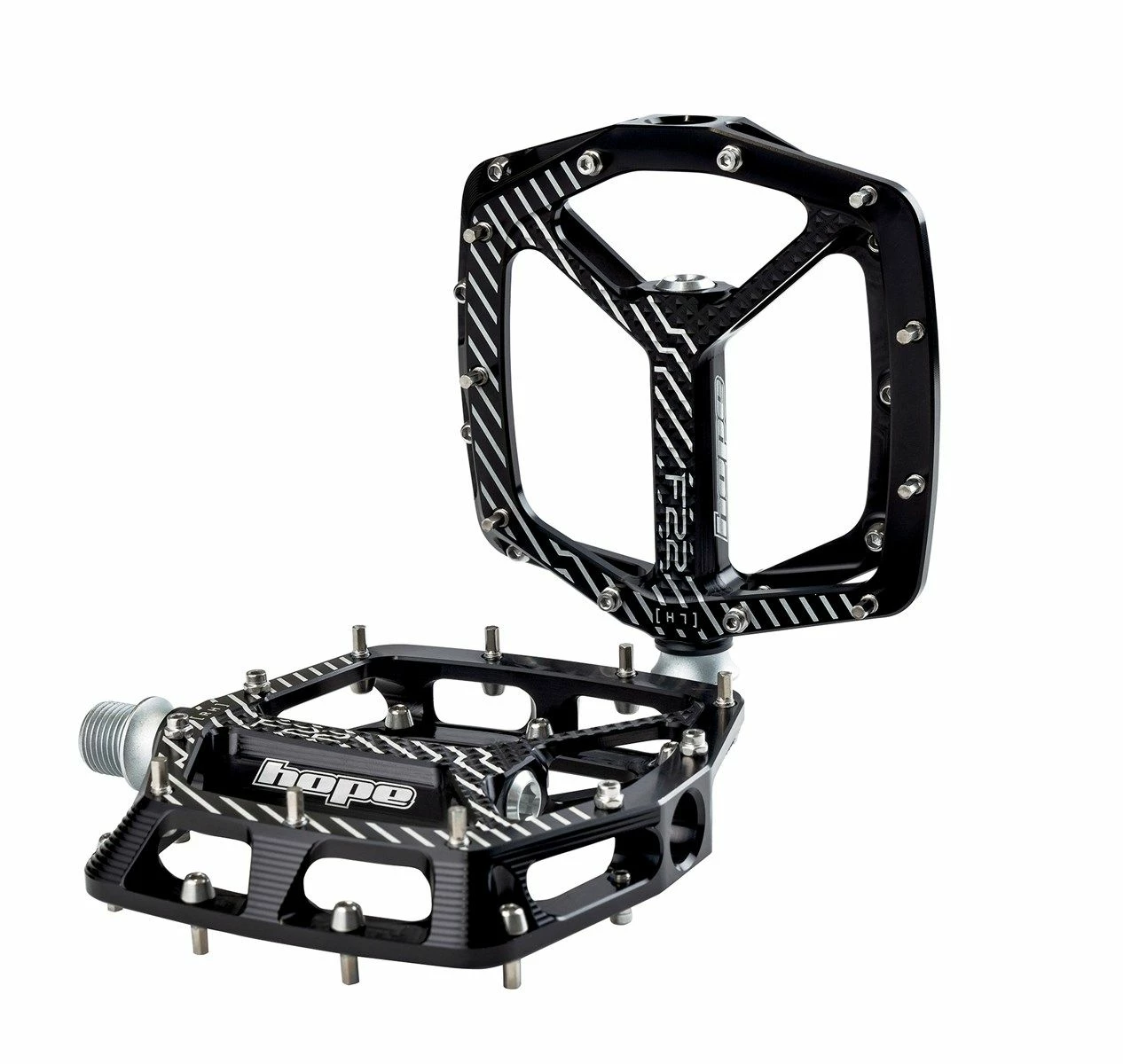

Hope F22 Pedals

The culmination of years of expertise and knowledge to make a more durable and better performing flat pedal.

Redesigned Platform Shape

• Platform size has increased compared to the F20 pedal (105 x 102mm usable)
• Careful consideration has been given to getting the right balance between foot stability and clearance in narrow
  gaps and ruts
• Asymmetric shape designed to give full support to the shoe sole, extending to areas the F20 platform didn’t

All New Pin Design

• Reverse loading design prevents pins coming loose and means you have a much better chance of removing them when
  you want to
• Unique hex shape for extra bite
• Height adjustable using supplied spacers
• Max pin height of 6mm

Concave Profile

• Dual concave profile helps hold the shoe on the platform and give a superior planted feeling
• Concavity enhanced by using shorter pins towards the middle of the platform and having no pin locations in the
  centre of the platform

Pedal Internals

• Proven internal layout of F20 pedal remains for smooth long-term durability
• Three cartridge bearings and an IGUS bush
• Internal and external sealing prevents any ingress of dirt and debris
• Fully serviceable and re-buildable
• Revised axle design for improved strength and impact resistance

Features

• Redesigned platform
• 5 axis machined body
• Larger concave dome profile for stable foot support and a superior planted feel
• Asymmetric and Tapered shape for the right balance between foot stability & clearance on tight trails and in
  ruts
• Longer and adjustable pins with a unique hex shape face for extra bite
• Enhanced concavity with shorter pins used towards the centre of the platform
• Reverse loading pins so less chance of getting stuck or untightening on the trail
• Proven internals from F20 remain
• Three cartridge bearings and an IGUS bush
• Internal and external sealing prevents any ingress of dirt and debris
• Fully serviceable and re-buildable
• Revised axle design for improved strength and impact resistance
• Weighs 360g per pair
