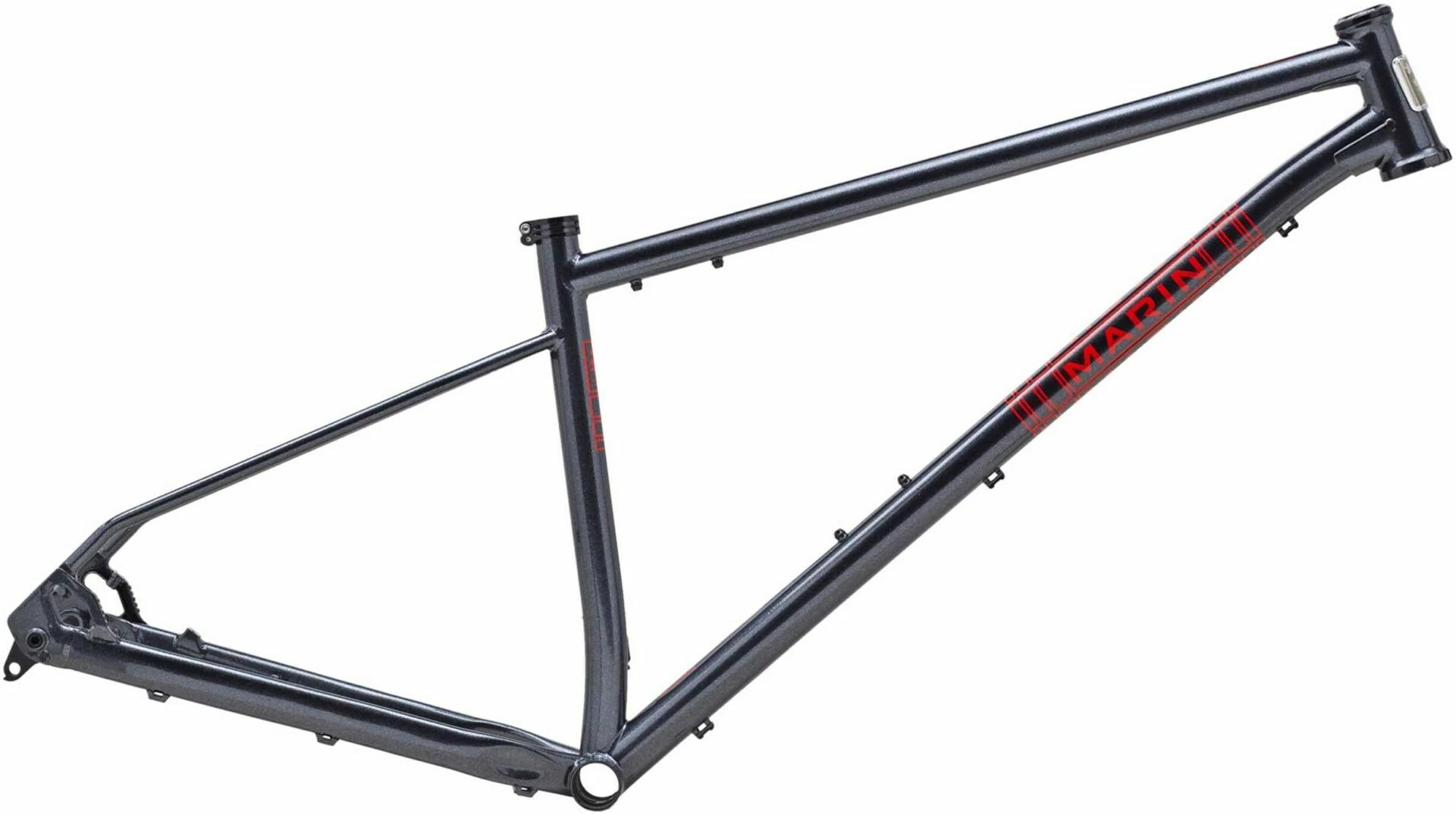

Marin EL Roy 2022 Frame Kit

The El Roy is the ultimate aggressive steel hardtail that’ll get you to the top, and then really shine on the way down, with a spicy mix of progressive geometry and supple steel.

Features

• Downhill trails
• Enduro
• Slashing berms
• All trails, all conditions

Technologies

• Series 3 Chromoly Frame: The El Roy is built on a stout Series 3 4130 Chromoly frame with investment cast dropouts, integrated drop-in headset, external brake and hose mounts, all fully ED coated for longevity.
• Geometry: Gravity-oriented geometry, with a 63° headtube and 78° seattube angles, 44mm fork offset, and long reach measurements (Regular = 480mm, Grande = 510mm).
• Two Sizes: Regular and Grande frame sizes fit a wide range of riders, with included 150mm (Regular) or 170mm (Grande) dropper posts.
• Investment Cast Dropouts: Custom investment cast Chromoly 148x12mm Boost thru-axle drop outs provide strength and stiffness where you need it most.

Specifications

• Frame: Series 3 Double Butted and Formed Chromoly Tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, Post Mount Brake Mounts
• Headset: FSA Orbit 40 No.42 ACB
• Seat Clamp: 33.3mm OD
