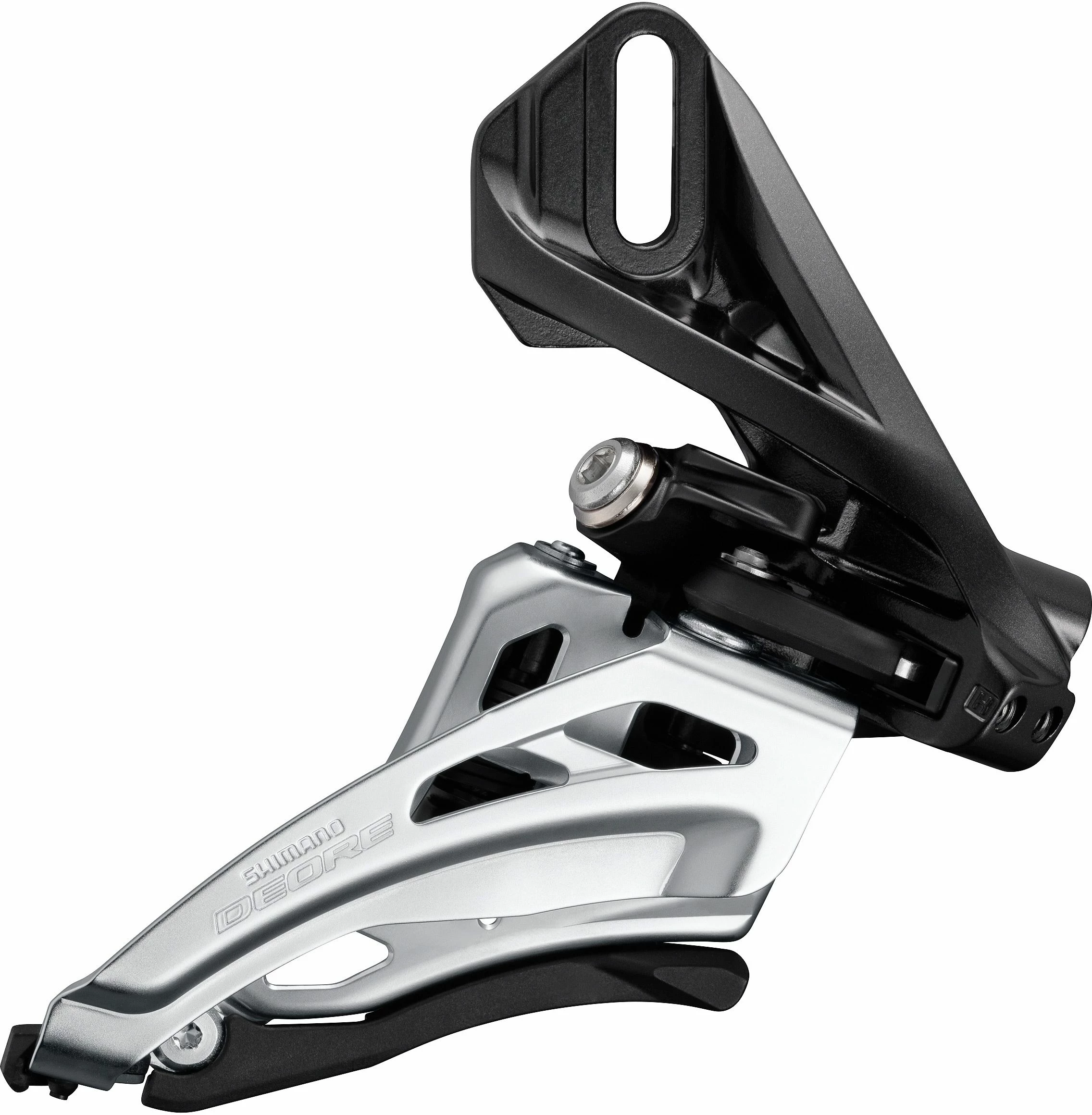

Shimano Deore FD-M6020 Double Front Derailleur

The Shimano Deore M6000 series front derailleurs feature a Side Swing design that improves cable routing while also
providing a light action and smooth operation on 2 x 10 speed drivetrains.

Technology

HG-X Chain

Further evolution of shifting performance.

A directional mountain bike specific 10-speed HG-X chain means smoother shifts, lighter weight and greater overall
performance. HG-X directional chain: Outer side is optimized for front shifting and inner side is optimized for rear
shifting.

Special 10-speed Chain for MTB

• Designed for MTB riding conditions: High torque pedaling and muddy conditions
• Durable: Lightweight holes on the link plate are filled
• Mud shedding: Consistent shifting performance under muddy conditions

*HG-X chain is not compatible with other road 10-speed systems.

Side Swing Front Derailleur

Horizontal movement follows the chain direction – smooth & efficient front shifting effort

More tire clearance for larger wheels

• No linkage behind seat tube
• Freedom to reduce chainstay length

50% more powerful outward shifting (FD-M9020)

Wider chainstay angle increases traction range (FD-M9020)

Features

• Wide link design Dyna-Sys 10-speed Deore MTB front derailleur
• Side swing, side pull front derailleur decrease problems with tyre clearance and reduces cable friction
• Designed specifically with modern trail bikes in mind, Shimano side swing technology front derailleurs increases
  tyre clearance, while cable routing resulting in the lightest shifting action yet
• Side pull cable routing
• Wide pivot link design for greater torsional rigidity improves shifting response and service life
• Direct frame fit for easy and accurate installation giving perfect alignment
• Mid clamp band mount, comes with the necessary shims for all band dimensions
• Dyna-Sys 10-speed MTB drivetrain compatibility
• Reinforced steel chain guide offers high strength and rigidity for improved shifting response
• For double 34-38 tooth chainring
• For 66-69 degree chainstay angle
