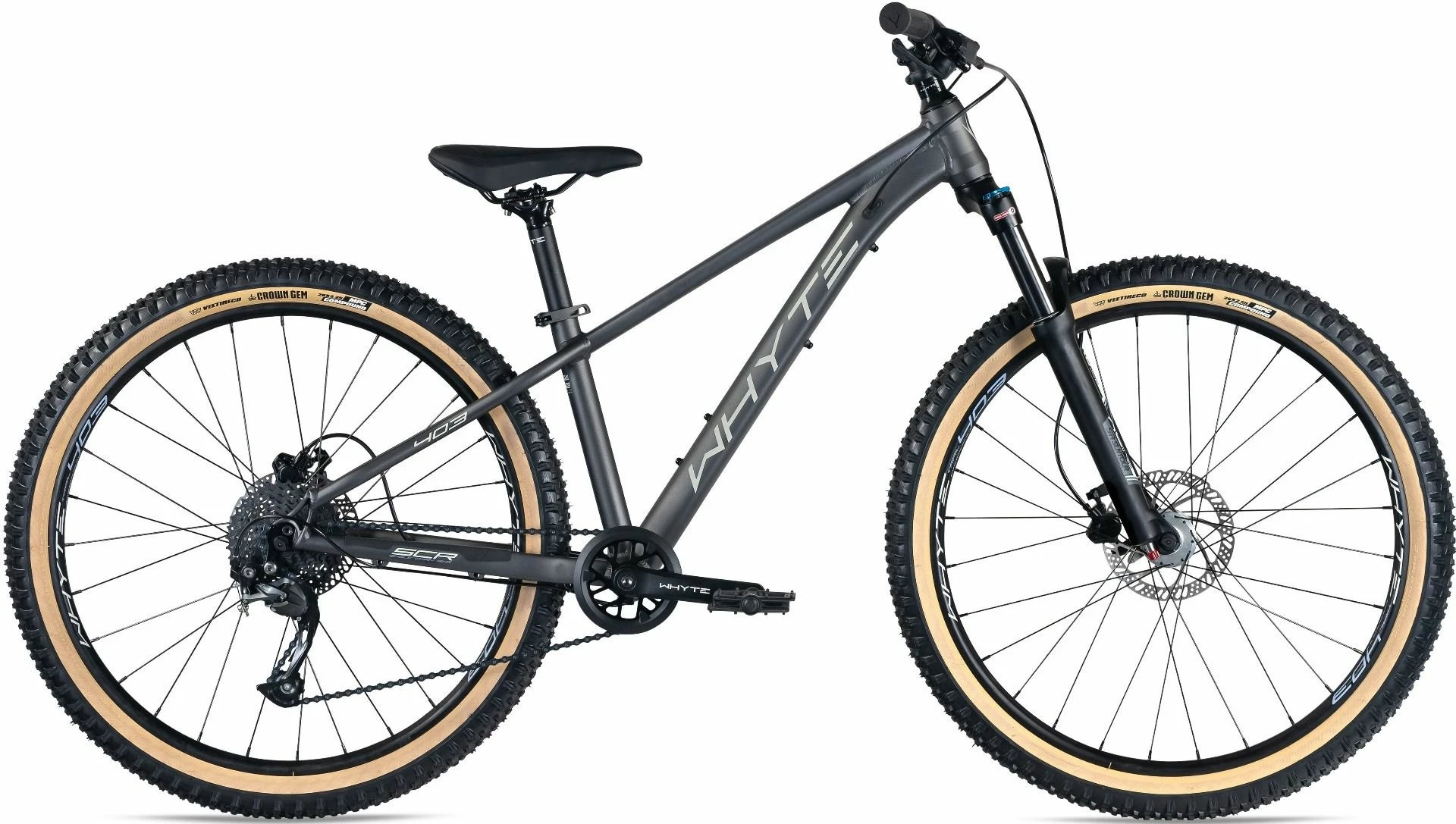

Whyte 403 26-Inch Junior V3 Bike

Specifications

Frame and Forks

• Frame: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Internal Cable Routing with BBX and Chainstay Post Mount Dropouts
• Fork: SR Suntour XCR, 100mm Travel, Hydro Lock-out, Air Spring, Adjustable Rebound, Post Mount
• Headset: Feimin H807B, Semi Integrated, 1 1/8″ Caged Bearings

Drivetrain

• Rear Derailleur: Shimano Altus RD-M2000-SGS, 9 Speed
• Cassette: SunRace CSM90, ED Black 11-36, 9 Speed
• Chain: SunRace, 9 Speed
• Crankset: Alloy 6061, 28 Tooth Narrow Wide Chainring, Single guard, 152mm Crank Length
• Bottom Bracket: Square Interface, Cartridge Bearings, 73mm

Braking/Shifting

• Shift Levers: Shimano Altus SL-M2010, Trigger Shifter, 9 Speed
• Front Brakes: Tektro HD-M275, Hydraulic, 160mm Rotor
• Rear Brakes: Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
• Brake Levers: Tektro HD-M275

Wheels

• Spokes: 2.0mm, PG, Black Stainless, Brass Nipples
• Front Hub: Alloy, Cup & Cone, Double Seal, 28 Hole
• Rear Hub: Alloy, Cup & Cone, Double Seal, 28 Hole
• Rims: Whyte Trail-403, 28 Hole
• Tyres: Vee Tyre Co, Crown Gem 26″ x 2.25″

Finishing Kit

• Seatpost: Whyte 6061 Alloy, 15mm Offset, 30.9mm x 300mm, 2 Bolt Clamp
• Saddle: Whyte Jr Mid Custom
• Handlebar: Whyte 6061 Alloy, 25mm Rise, 31.8mm, 660mm Wide
• Stem: Whyte Alloy, 35mm
• Grips: Whyte Lock-on V Grip
• Pedals: Fibre Reinforced Composite Platform
