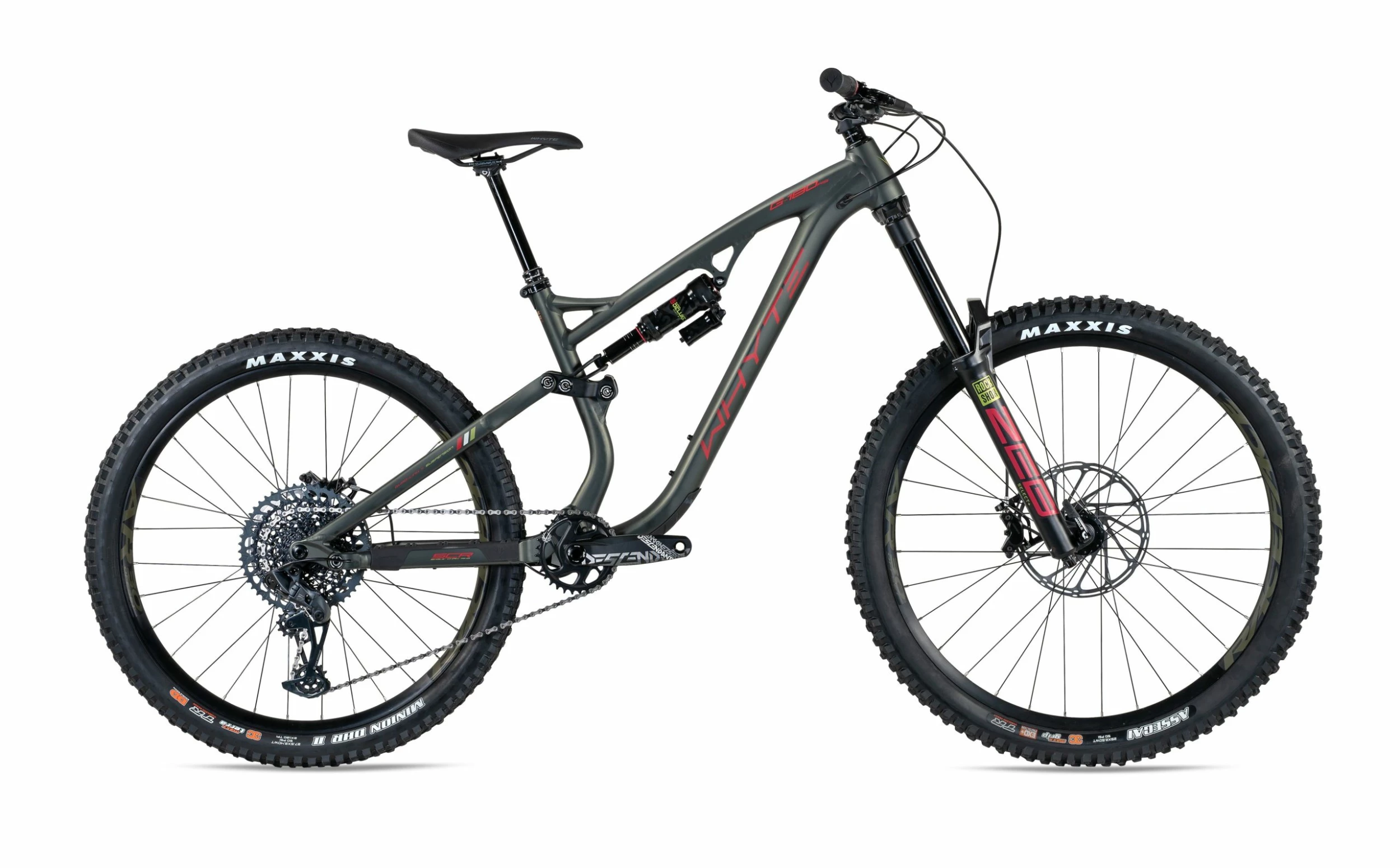

Whyte G-180 RS MX Bike

Ultimate Shred Sled

MX, Mullet, Mixed Wheel. Whatever you want to call it, that moment when the 27.5in wheel back end helps you drift the perfect corner arc as the 29er Assegai tyre nails guaranteed traction up front will tell you everything about why dual wheel sizes are the ultimate thrill on the hill.

We’ve dialled in our award-winning ride dynamics, nailed the spec and Double Downed on the rear tyre to make the absolute most of the grin gains on our G-180 RS MX too.

Our 180mm MX bikes are the sickest rides we make for when maximum thrills are the win you’re chasing.

Specification

Frame and Forks

• Frame: 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts
• Fork: RockShox ZEB Select + 29″, 180mm Travel, 38mm Offset, DebonAir, Charger 2.1 RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
• Shock: RockShox Super Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound, 2 position compression adjustment

Drivetrain

• Rear Mech: SRAM NX Eagle, 12 Speed
• Cassette: SRAM XG-1275 Eagle, 10-52, 12 Speed
• Chain: SRAM GX Eagle, 12 Speed
• Crankset: SRAM Descendant 7K Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost, 12 Speed
• Bottom Bracket: SRAM DUB, BSA, 73mm

Braking/Shifting

• Shift Levers: SRAM SX Eagle, MMX, 12 Speed
• Front Brakes: SRAM Code R, 4 Piston with Sintered Metal Pads, 220mm Disc
• Rear Brakes: SRAM Code R, 4 Piston with Sintered Metal Pads, 200mm Disc, Internal Routing
• Brake Levers: SRAM Code R, MMX

Wheels

• Rims: Race Face 27.5″ rear, 29″ front AR-30, Offset, 30mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole
• Front Hub: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
• Rear Hub: Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 9 deg Micro Engagement 4 Pawl, 32 Hole
• Tyres: Maxxis Assegai WT, TR, 29″ x 2.5″ 60TPI, EXO+ Sidewall Protection, 3C Maxx Grip, Dual Compound, Folding Bead, Front, Maxxis Minion DHR WT, TR, 27.5″ x 2.4″ WT 120TPI, Double Down Casing, 3C Maxx Terra, Rear
• Spokes: DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples

Finishing Kit

• Handlebar: Whyte Custom 6061 Alloy, 20mm Rise, 35mm Bar Bore, 800mm Wide
• Grips: Whyte Lock-on Enduro Grip
• Headset: FSA No. 57 Orbit ZS Plus, Integrated, 1 1/2″ Lower and 1 1/8″ Upper Sealed Cartridge Bearings
• Stem: Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
• Seatpost: Bike Yoke Divine, 30.9mm, M/L/XL 160mm Travel, Triggy Remote with MMX attachment
• Saddle: Whyte Custom, Dual Density, Triple Panel Design
