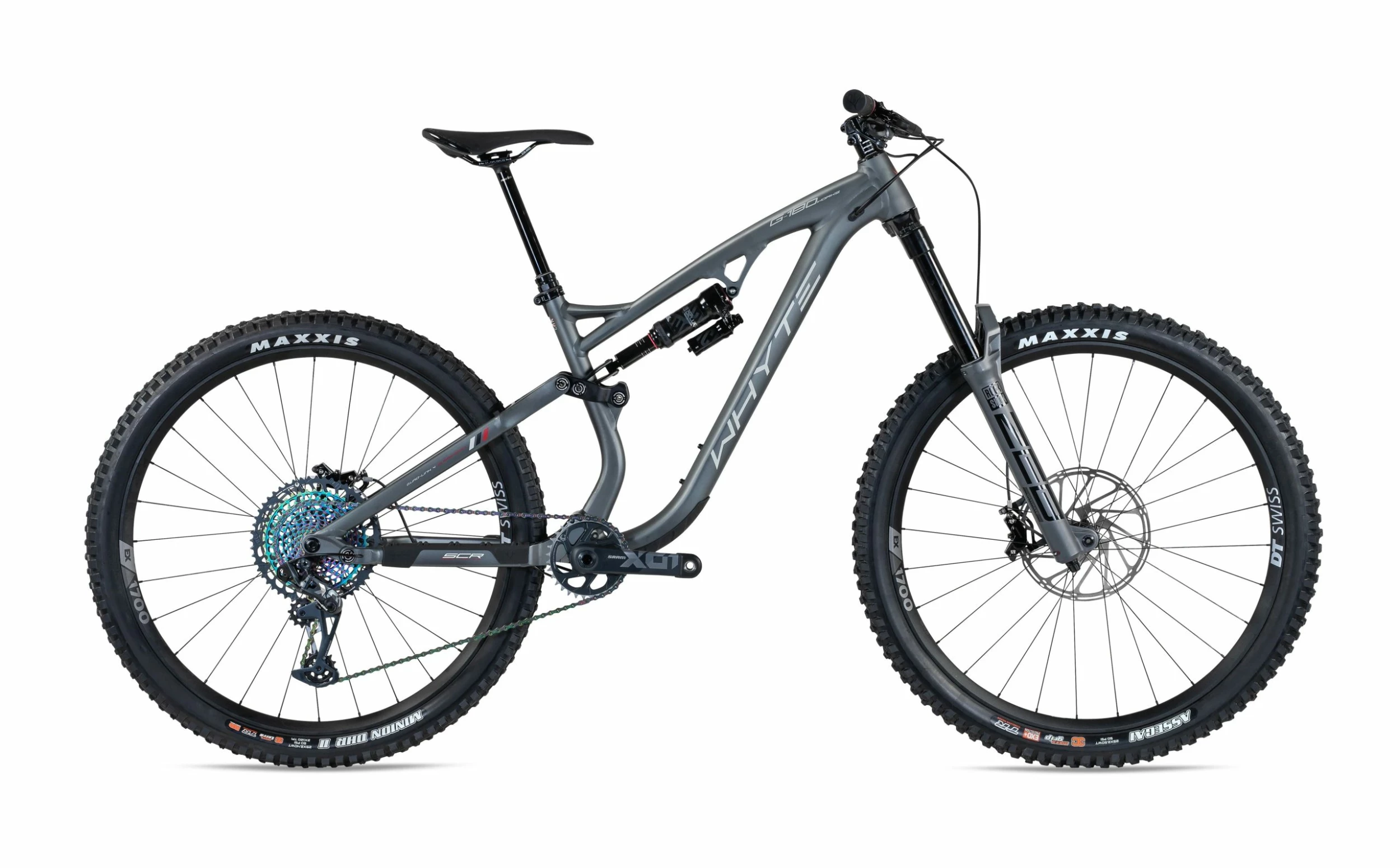

Whyte G-180 Works 29er Bike

Ride what we win on

What else were we going to call the top line spec that our Whyte Enduro team races and wins on? DT Swiss 29er wheels
with premium Maxxis Assegai and DHR tyres give ultimate, blasting speed and grip. RockShox ZEB Ultimate 180mm fork
and Super Deluxe rear shock, custom tuned for flat out control through EWS rock gardens.

Race Face carbon bar connecting you to our award winning, multiple podium topping, skill expanding Total Geometry
ride vibe. When the trails are insane choosing anything else is just crazy.

Specifications

Frame and Forks

• Frame: 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy Symmetrical
  SCR Rear Triangle, Shape.it and 148mm Boost Dropouts
• Forks: RockShox ZEB Ultimate 29”, 180mm Travel, 44mm Offset, DebonAir, Charger 2.1 RC2 Damper, Fast Black
  Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Stealth
• Rear Shock: RockShox Super Deluxe Ultimate RCT, Air, Fast Black Coating, Adjustable Rebound, low speed
  compression adjustment and tuneable DebonAir
• Headset: FSA No. 57 Orbit ZS Plus, Integrated, 1 1/2″ Lower and 1 1/8″ Upper Sealed Cartridge Bearings

Drivetrain

• Crankset: SRAM X01 Carbon Eagle, X-SYNC 2, Direct Mount 32 Tooth, DUB, 170mm, Boost, 12 Speed
• Rear Derailleur: SRAM X01 Eagle, 12 Speed
• Cassette: SRAM XG-1299 Eagle, 10-52 Tooth, 12 Speed, Copper
• Chain: SRAM XX1 Eagle, 12 Speed, Copper

Braking/Shifting

• Shifters: SRAM X01 Eagle, MMX, 12 Speed
• Front Brakes: SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc
• Rear Brakes: SRAM Code RSC, 4 Piston with Sintered Metal Pads, 200mm Disc, Internal Routing
• Brake Levers: SRAM Code RSC, MMX

Wheels

• Rims: DT Swiss EX1700 30mm, Sleeved Joint, 28 Hole
• Front Hub: DT Swiss 350 Straightpull, Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 28 Hole
• Rear Hub: DT Swiss 350 Straightpull with 18 Tooth Ratchet System, 12mm x 148mm, 6 Bolt, 28 Hole
• Spokes: DT Swiss Competition Butted 2.0-1.8-2.0mm, Black Stainless, ProLock Nipples
• Front Tyre: Maxxis Assegai WT, TR, 29″ x 2.5″ 60TPI, EXO+ Sidewall Protection, 3C Maxx Grip, Dual Compound,
  Folding Bead
• Rear Tyre: Maxxis Minion DHR WT, TR, 29” x 2.4” 120TPI, Double Down Casing, 3C Maxx Terra

Finishing Kit

• Handlebars: Race Face NEXT R Carbon, 20mm Rise, 35mm Bar Bore, 800mm Wide
• Grips: Whyte Lock-on Enduro Grip
• Stem: Race Face Atlas, 35mm Bar Bore, 35mm Extension
• Seatpost: RockShox Reverb Stealth, 30.9mm, Medium 150mm Travel, Large / X-Large 175mm Travel, X1 Remote
• Saddle: Whyte Custom, Team, Lightweight Foam, CrMo Rails
• Pedals: Not Included
